Powerful and Portable – Ideal for Mobile Equipment

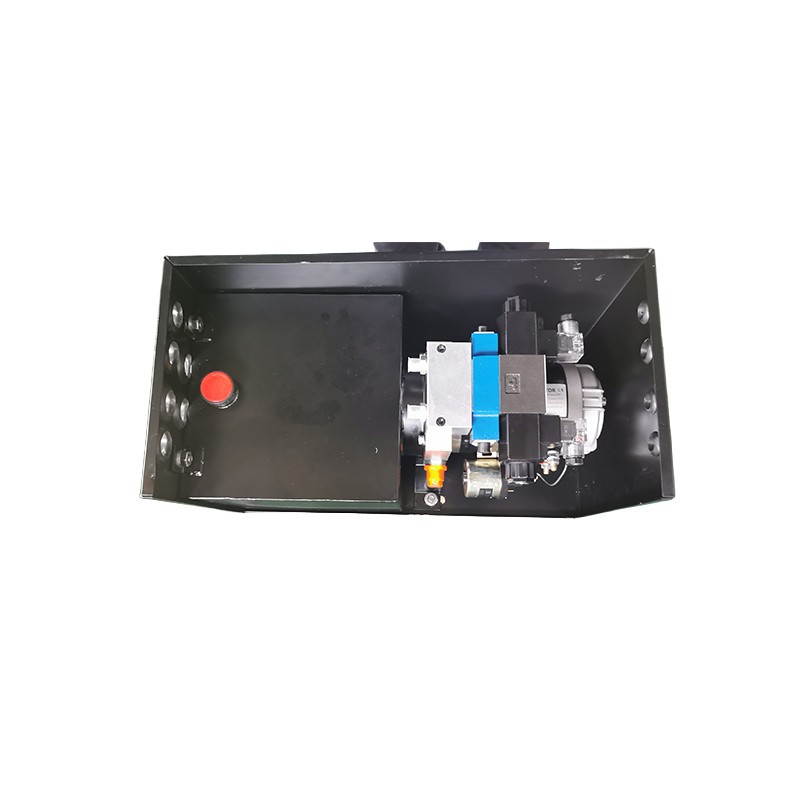

Our 24V hydraulic power unit runs on your vehicle's battery. It can be used on trucks and machines without a power outlet. It provides strong power for a wide range of applications. The unit uses a high-quality DC motor directly connected to the pump. This design delivers high starting torque and efficient operating speed. It ensures a steady oil flow to drive different tools.
Trusted by Major Brands – Performs Well in Harsh Environments
We have supplied valve blocks for sugarcane machines from Zoomlion. We have also provided systems for tank trucks and mixer trucks from CIMC, which were exported to Mexico. This 24V hydraulic power unit performs reliably in dusty, hot, and high-vibration environments. All valves are integrated onto a single steel plate, reducing the number of pipes and minimizing the risk of leaks. The anti-corrosion coating prevents rust and ensures a long service life on construction vehicles.
Easy to Control and Ready to Use
You can control the unit with a manual switch, a wireless remote, or a PLC signal. Single-acting and double-acting circuits are available. The 24V hydraulic power unit can quickly perform lifting, tilting, pressing, and opening operations. Our factory has 7 years of experience, a 2,000㎡ workshop, and an in-house design team. Samples can be provided after confirming the terms. Common power options such as 0.75kW, 1.6kW, 2.2kW, and 3.0kW are in stock.
Specifications
|
Item |
Details |
|
Rated Voltage |
DC 12V / 24V |
|
Motor Power |
0.75kW – 4.0kW (optional) |
|
No-Load Flow |
0.8 – 5 L/min |
|
Rated Pressure |
16 – 20 MPa |
|
Tank Volume |
1.5L – 20L (carbon steel / stainless steel) |
|
Valve Block Function |
Single / double acting; manual / solenoid valve; relief / holding |
|
Sample Policy |
Available under certain conditions (not free) |
|
Custom Service |
OEM support; valve block and port modifications per drawings |
|
Trade Terms |
EXW (preferred); FOB Ningbo / Shanghai |
|
Packaging |
Custom wooden box |
|
Lead Time |
10–15 days (stock items ship immediately) |
